Gravitymon Wireless Charging!

Finally i had time to create the charging stands and validate the wireless charging feature for both PILL and PET PCB's and it worked just like expected.

It's not the most efficient coils but it gets the job done, they fit in the case and they charge the devices. So the charging was 0.1 A which means to fully charge a device will take 22 hours.

The 3d models (including source) is in my 3d-design repository. here.

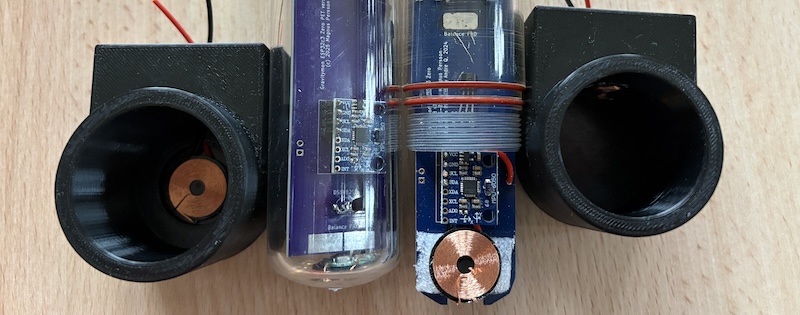

The PET stand is built so the coil is on the bottom facing down, and the PILL stand is built for the coil to be mounted on the PCB as shown in the image.

PILL PCB

I also had the chance to test and validat the PILL PCB and it was ok, standard tilt was 29 degress, so i had to add 1g at the top to get to 25 degrees. I moved the gyro a few centimeters so hopefully that will make the trick. The adjusted version v1.1 is being manufactured so I will report on that when done.

Happy brewing, Magnus
