Gravitymon Gateway
Gravitymon gateway is used to collect data from gravity/pressure devices via WiFi or Bluetooth and then forward that data to the remote services. Both the Gravitymon and Pressuremon projects are supported.
Flash a device through the web flasher
){kind=small}
Service integration
A number of popular brewing software are supported and validated, Most of these will work with limited setup.
Examples include; Brewfather, BrewSpy, Brewers Friend, Fermentrack, Ubidots, Thingsspeak and Home Assistant.
Customize data sent
There is a built editor to allow you to customize the data format that is sent to external services. This makes it possible to support any external service without the need for software changes. HTTP, HTTPS, MQTT, InfluxDB is built into the software.
Features
Easy configuration
You can easily access the web based configuration and configure the device
Multiple endpoints
The device has the possibility to send data to 5 different endpoints at the same time
Web Protocols
Support web standards for sending data; HTTP (Post/Get), MQTT and Influx DB v2
Open Source
Fully open source, free to use and modify in aligment with the MIT licence
RESP API
Standard REST API for scripted interaction with the device
Updates
Software can be updated over web interface
Backup & Restore
Save your configuration and restore if needed
Wifi Direct
Wifi Direct to ensure maximum reception with devices
WiFi Scan
Scan and connect to the strongest WiFi Access Point (AP)
Bluetooth
Multiple bluetooth receive options
Gravity Data
Support gravity devices (iSpindle / Gravitymon)
Pressure Data
Support pressure devices (Pressuremon) 0.7+
TFT with Touch
Touch enabled screen 0.8+
SD Card
Logging of data to SD card 0.8+
Format Editor
Easy customization of data sent via editor

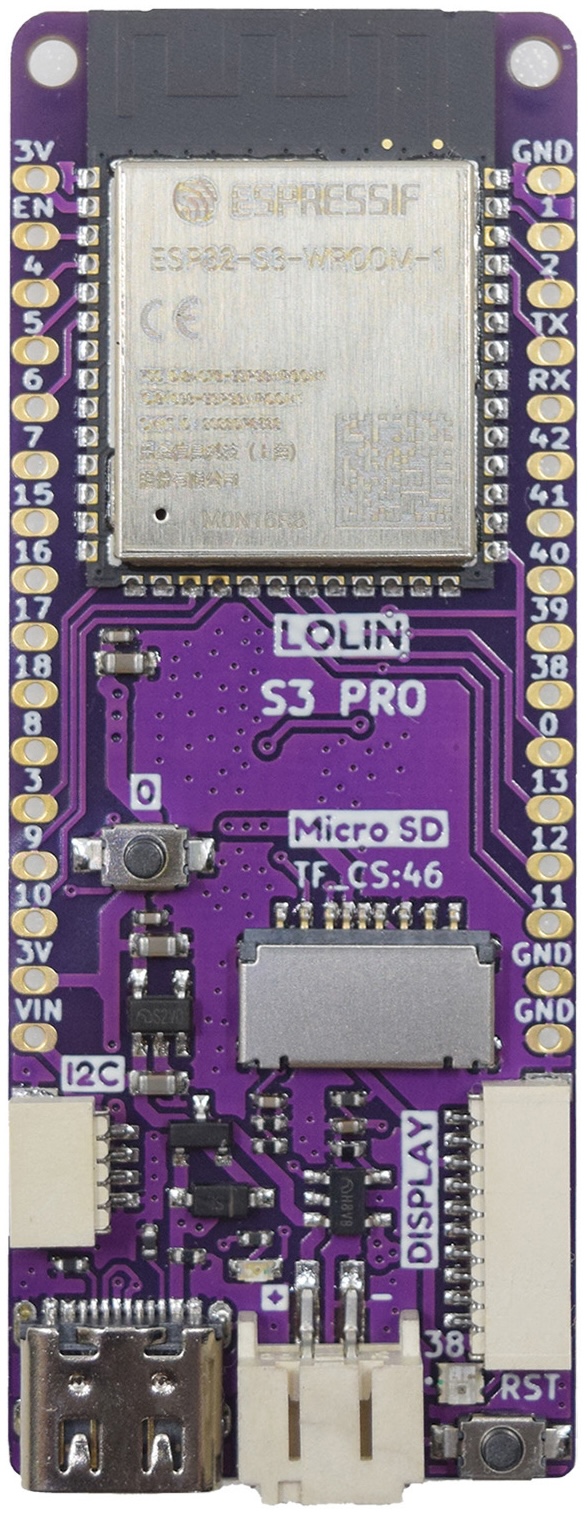

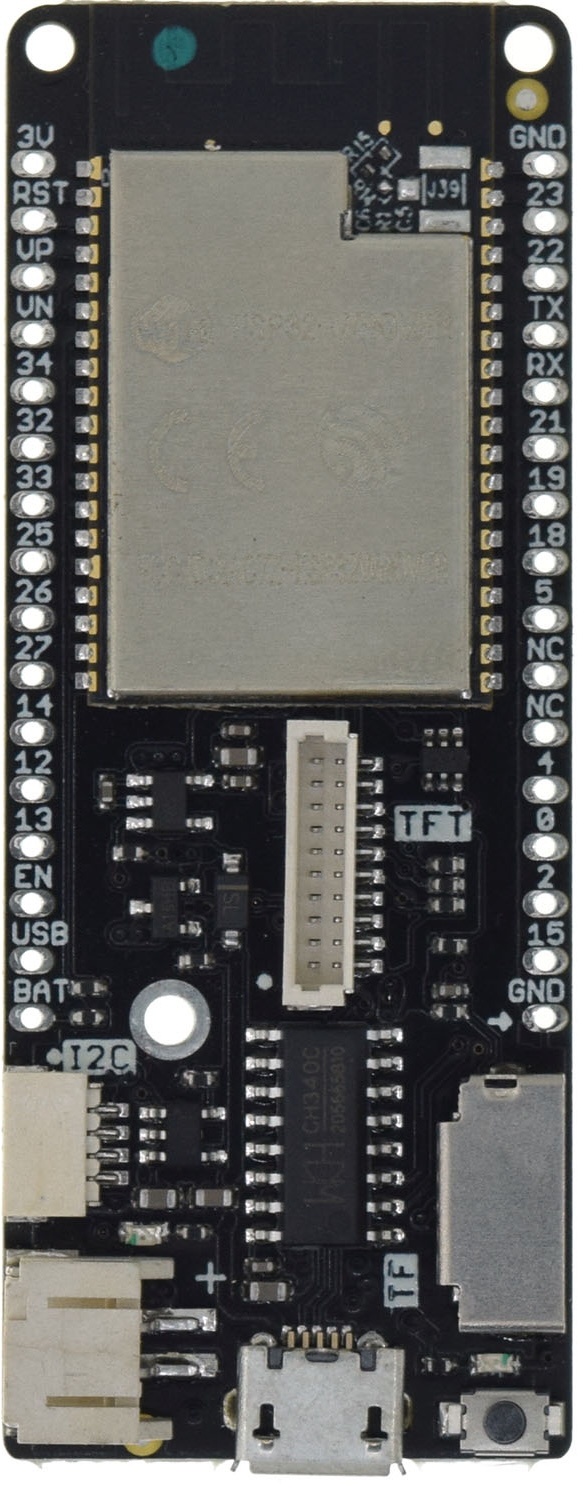

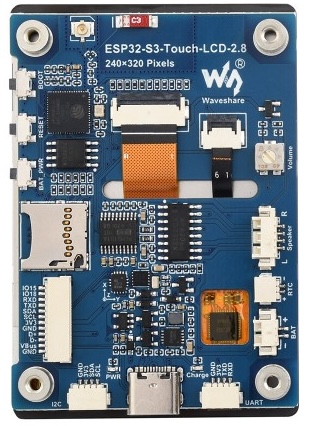

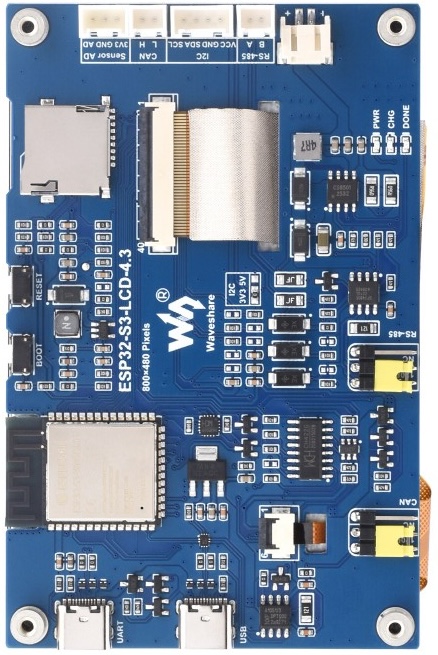

Board options
